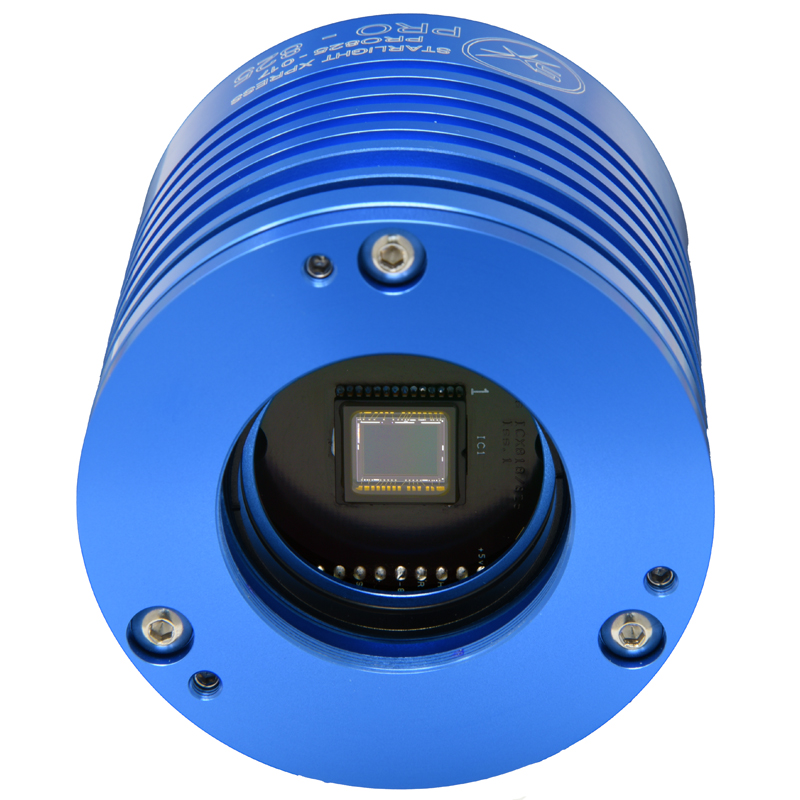

The TRIUS PRO825 – an Exview2 version of the SX9.
This new camera uses a brand new version of the legendary ICX285 – used in thousands of H9 cameras since 2003. The new chip (ICX825) offers an excellent QE of approx. 75% in the yellow visual band and an extremely good H alpha QE. The image format and pixel size are the same as for the SX9 camera.
Specifications: Starlight Xpress Trius Pro-825 Blue Edition
CCD type: Sony ICX825AQ (colour) / ICX825AL (mono) EXview II HAD CCD with ultra low dark current, extended IR response and vertical anti-blooming.
CCD quality: Grade 1 or better – No bad columns, no dead pixels, no more than 6 ‘hot’ pixels (saturated in <10 seconds).
CCD Full resolution Pixel data: Pixel size: 6.45uM x 6.45uM, Image format: 1392 x 1040 pixels
CCD Image area: 8.98mm (Horizontal) x 6.7mm (Vertical).
Spectral Response: QE max at 540nM (~65%), 50% roll-off at 400nM and 750nM.
Readout Noise: Typically ONLY 3.5 electrons.
Full-well capacity: Greater than 23,000 e- (unbinned)
Anti-blooming: Overload margin greater than 800x.
Dark current: Dark frame saturation time greater than 100 hours. Less than 0.002 electrons/second @ -10C.
Data format: 16 bits.
System gain: 0.3 electrons per ADU
Computer Interface: Built-in USB 2.0 compatible interface with 3 port USB 2 hub for peripheral devices.
Image download time: Typically 0.6 seconds full resolution using USB 2.0, approximately 2 seconds with USB 1.1.
Power requirements: 115VAC / 240VAC @ 12VA, or 12VDC @ 1.5 A max.
Cooling system: Regulated set-point cooling supply with two stage thermoelectric cooler to give a CCD temperature of better than -40C below ambient. Dry Argon fill.
Size: 75 x 70mm black anodised aluminium barrel with 42mm ‘T2’ thread at the CCD window end & input/output plugs at rear.
Weight: approx. 450g
